Using secondary indexes in RethinkDB

Secondary indexes are data structures that improve the speed of many read queries at the slight cost of increased storage space and decreased write performance.

RethinkDB supports different types of secondary indexes:

  • Simple indexes based on the value of a single field.
  • Compound indexes based on multiple fields.
  • Multi indexes based on arrays of values.
  • Indexes based on arbitrary expressions.

Simple indexes

Use simple indexes to efficiently retrieve and order documents by the value of a single field.

Creation

// Create a secondary index on the last_name attribute
r.table("users").indexCreate("last_name").run(conn, callback)
// Wait for the index to be ready to use
r.table("users").indexWait("last_name").run(conn, callback)

Querying

// Get all users whose last name is "Smith"
r.table("users").getAll("Smith", {index: "last_name"}).run(conn, callback)

// Get all users whose last names are "Smith" or "Lewis"
r.table("users").getAll("Smith", "Lewis", {index: "last_name"}).run(conn, callback)

// Get all users whose last names are between "Smith" and "Wade"
r.table("users").between("Smith", "Wade", {index: "last_name"}).run(conn, callback)

// Efficiently order users by last name using an index
r.table("users").orderBy({index: "last_name"}).run(conn, callback)

// For each blog post, return the post and its author using the last_name index
// (assume "author_full_name" is the name of a field in "posts")
r.table("posts").eqJoin("author_last_name", r.table("users"), {index: "last_name"}) \
    .zip().run(conn, callback)

Want to learn more about joins in RethinkDB? See how to use joins to query one to many and many to many relations.

Compound indexes

Compound indexes use arrays to efficiently retrieve documents by multiple fields.

Creation

// Create a compound secondary index based on the first_name and last_name attributes
r.table("users").indexCreate(
    "full_name", [r.row("last_name"), r.row("first_name")]
).run(conn, callback)
// Wait for the index to be ready to use
r.table("users").indexWait("full_name").run(conn, callback)

Querying

// Get all users whose full name is John Smith.
r.table("users").getAll(["Smith", "John"], {index: "full_name"}).run(conn, callback)

// Get all users whose full name is between "John Smith" and "Wade Welles"
r.table("users").between(
    ["Smith", "John"], ["Welles", "Wade"], {index: "full_name"}
).run(conn, callback)

// Get all users whose last name is Smith.
r.table("users").between(
    ["Smith", r.minval], ["Smith", r.maxval], {index: "full_name"}
).run(conn, callback)

// Efficiently order users by first name and last name using an index
r.table("users").orderBy({index: "full_name"}).run(conn, callback)

// For each blog post, return the post and its author using the full_name index
r.table("posts").eqJoin(
    "author_full_name", r.table("users"), {index: "full_name"}
).run(conn, callback)

Internally, compound indexes and simple indexes are the same type of index in RethinkDB; compound indexes are simply a special case of regular index that returns an array rather than a single value. Note that this affects sorting: compound index values are sorted lexicographically, with the first (leftmost) elements of the compound value being more significant than the last (rightmost) ones. Therefore, using the full_name index, the above example “all users whose last name is Smith” only works for the last_name field. Searching by first_name with a query like between([r.minval, "John"], [r.maxval, "John"], {index: "full_name"}) would effectively select every user in the table, except (theoretically) users that have r.minval as last name and a first name lexicographically smaller than “John” (or the reverse for r.maxval).

Multi indexes

With simple and compound indexes, a document will be indexed using at most one index key: a single value for a simple index and a set of values for a compound index. Multiple documents may have the same index key. With a multi index, a document can be indexed using more than one key in the same index. For instance, a blog post might have multiple tags, and each tag might refer to multiple blog posts.

The keys in a multi index can be single values, compound values or even arbitrary expressions. (See the section below for more detail on indexes using functions.) What matters is that the “multi-value” that gets indexed is an array: the document will be referenced in the index multiple times, one for each element of this array.

Creation

Suppose each post has a field tags that maps to an array of tags. The schema of the table posts would be something like:

{
    title: "...",
    content: "...",
    tags: [ <tag1>, <tag2>, ... ]
}

// Create the multi index based on the field tags
r.table("posts").indexCreate("tags", {multi: true})

// Wait for the index to be ready to use
r.table("posts").indexWait("tags").run(conn, callback)

Querying

// Get all posts with the tag "travel" (where the field tags contains "travel")
r.table("posts").getAll("travel", {index: "tags"}).run(conn, callback)

// For each tag, return the tag and the posts that have such tag
r.table("tags").eqJoin("tag", r.table("posts"), {index: "tags"}).run(conn, callback)

Note that queries with getAll or between may return the same document multiple times unless you use the distinct command.

Indexes on arbitrary ReQL expressions

You can create an index on an arbitrary expression by passing an anonymous function to indexCreate.

// A different way to do a compound index
r.table("users").indexCreate("full_name2", function(user) {
    return r.add(user("last_name"), "_", user("first_name"))
}).run(conn, callback)

The function you give to indexCreate must be deterministic. In practice this means that that you cannot use a function that contains a sub-query or the r.js command.

If the function passed to indexCreate returns an error for a given document, that document will not be indexed. No error will be returned for those documents.

Using multi indexes and arbitrary expressions together

You can create a multi index on an arbitrary expression in similar fashion, by passing the multi option as the last parameter to indexCreate.

// Create a multi index on a ReQL expression
r.table("users").indexCreate("activities", r.row("hobbies").add(r.row("sports")),
    {multi: true}).run(conn, callback)

This can be useful if you want to search documents by multiple criteria at the same time, like messages posted in a forum that should be identifiable by:

  • the author
  • a tag (among many)
  • the publication time (range queries should be possible)

This would be an example document representing a posted message:

{
  id: "XXYYZZ",
  author: "John"
  tags: ["art", "hobby", "fun"],
  time: 123,
  text: "Text goes here..."
}

One way to build the index would be:

r.db("db").table("posts").indexCreate(
  "myIndex",
  function(post) {
    return post("tags").map(function(tag) {
      return [tag, post("author"), post("time")];
    })
  },
  {multi: true}
)

Then the query selecting posts about "fun", by "John", and posted between 120 and 130, would be:

r.db("db").table("posts").between(["fun", "John", 120], ["fun", "John", 130], {index:"myIndex"})

Note that, due to the index being sorted lexicographically (and the fact that between returns a single contiguous interval of rows), it would be possible to search for posts about "fun" by any author but then it would not be possible to limit the time range (not without building a different index, of course).

For the same reason, using this index to look for posts by "John" with any tag would not be possible.

Use a multi index and a mapping function to speed getAll/contains

If your program frequently executes a getAll followed by a contains, that operation can be made more efficient by creating a compound multi index using a mapping function on the field that contains the list.

// Create the index
r.table("users").indexCreate("userEquipment", function(user) {
    return user("equipment").map(function(equipment) {
        return [ user("id"), equipment ];
    });
}, {multi: true}).run(conn, callback);

// Query equivalent to:
// r.table("users").getAll(1).filter(function (user) {
//     return user("equipment").contains("tent");
// });
r.table("users").getAll([1, "tent"], {index: "userEquipment"}).distinct().run(conn, callback);

Administrative operations

// list indexes on table "users"
r.table("users").indexList().run(conn, callback)

// drop index "last_name" on table "users"
r.table("users").indexDrop("last_name").run(conn, callback)

// return the status of all indexes
r.table("users").indexStatus().run(conn, callback)

// return the status of the index "last_name"
r.table("users").indexStatus("last_name").run(conn, callback)

// return only when the index "last_name" is ready
r.table("users").indexWait("last_name").run(conn, callback)

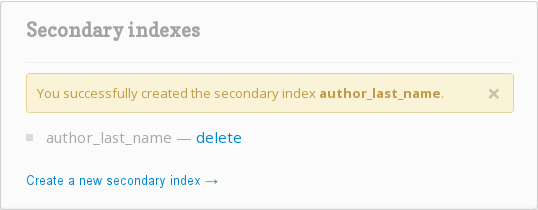

Manipulating indexes with the web UI

The web UI supports creation and deletion of simple secondary indexes. In the table list, click on the table users. You can manipulate indexes through the secondary index panel in the table view.

Notes

The primary index of a table can be used in any ReQL command that uses a secondary index.

Indexes (both secondary and primary) are guaranteed to be updated by successful write operations. If an insert, update or delete operation is successful, the change will be correctly reflected in the index. (Read about RethinkDB Consistency guarantees for write operations.)

The part of a secondary index key that’s used for fast lookups depends on the length of the primary key (which must be 127 bytes or less). The length of this part is 238−PK, where PK is the primary key length; if the primary key length is a 36-character GUID, for instance, this means that 202 characters in the secondary index will be significant. If a table has multiple entries where the first 238−PK characters are identical, lookup performance will be sharply degraded, as RethinkDB will have to perform a linear search to find the correct entries.

Secondary indexes will not store null values or objects. Thus, the results of a command such as:

r.table("users").indexCreate("group").run(conn, callback)
r.table("users").orderBy({index: "group"}).run(conn, callback)

may be different from an equivalent command without an index:

r.table("users").orderBy("group").run(conn, callback)

if the field being indexed has non-indexable values. This limitation will be removed in a future version of RethinkDB. See GitHub issue #1032 to track progress on this.

RethinkDB does not currently have an optimizer. As an example, the following query will not automatically use an index:

// This query does not use a secondary index! Use getAll instead.
r.table("users").filter({"last_name": "Smith" }).run(conn, callback)

You have to explicitly use the getAll command to take advantage of secondary indexes.

// This query uses a secondary index.
r.table("users").getAll("Smith", {index: "last_name"}).run(conn, callback)

You cannot chain multiple getAll commands. Use a compound index to efficiently retrieve documents by multiple fields.

An orderBy command that uses a secondary index cannot be chained after getAll. You can only chain it after a table command. However, you can chain orderBy after a between command provided it uses the same index.

RethinkDB does not support unique secondary indexes even for non-sharded tables.

More

Browse the API reference to learn more about secondary index commands:
